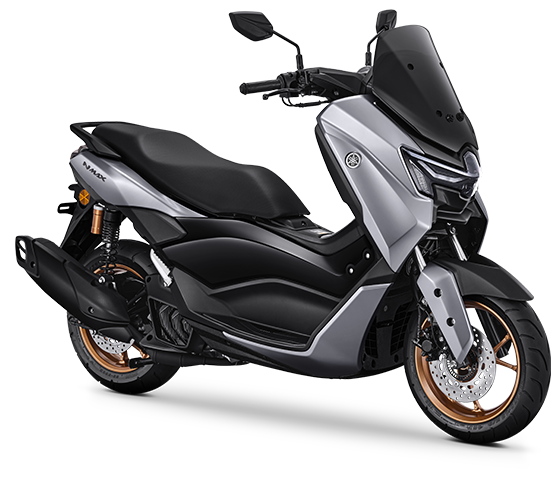

SPESIFIKASI YAMAHA NMAX TURBO
| Tipe Mesin | 155cc Blue Core, VVA, 4 Valve SOHC+ YECVT |
| Susunan Silinder | Single Cylinder |
| Diameter x Langkah | 58,0mm x 58,7 mm |
| Perbandingan Kompresi | 11,6 : 1 |
| Volume Silinder | 155.09 cc |
| Daya Maksimum | 11,3 kW / 8.000 rpm |
| Torsi Maksimum | 14,2 Nm/ 6.500 rpm |
| Sistem Starter | Pemula Listrik |
| Sistem Pelumasan | Bah Basah |
| Kapasitas Oli Mesin | 1 L |
| Sistem Bahan Bakar | Injeksi |
| Tipe Kopling | Kopling Kering Tunggal |
| Tipe Transmisi | Otomatis |
| P x L x T | 1935mm X 740mm X 1200mm |
| Jarak Sumbu Roda | 1340mm |
| Tinggi Tempat Duduk | 770mm |
| Berat Isi | 133 |
| Kapasitas Tangki Bensin | 7.1L |
| JARAK TERENDAH KE TANAH | 135mm |
| Tipe Rangka | Underbone |
| Suspensi Depan | Telescopic |
| Suspensi Belakang | Unit Swing |
| Ban Depan | 90/90-14M/C 46P |
| Ban Belakang | 100/90-14M/C 57P |
| Rem Depan | Hydraulic Single Dics Brake |
| Rem Belakang | Hydraulic Single Dics Brake |
| Tipe Ban | Tubeless |
| SISTEM PENGAPIAN | TCI |
| TIPE BATTERY | YTZ6V |
| TIPE BUSI | CPR8EA-9 |
